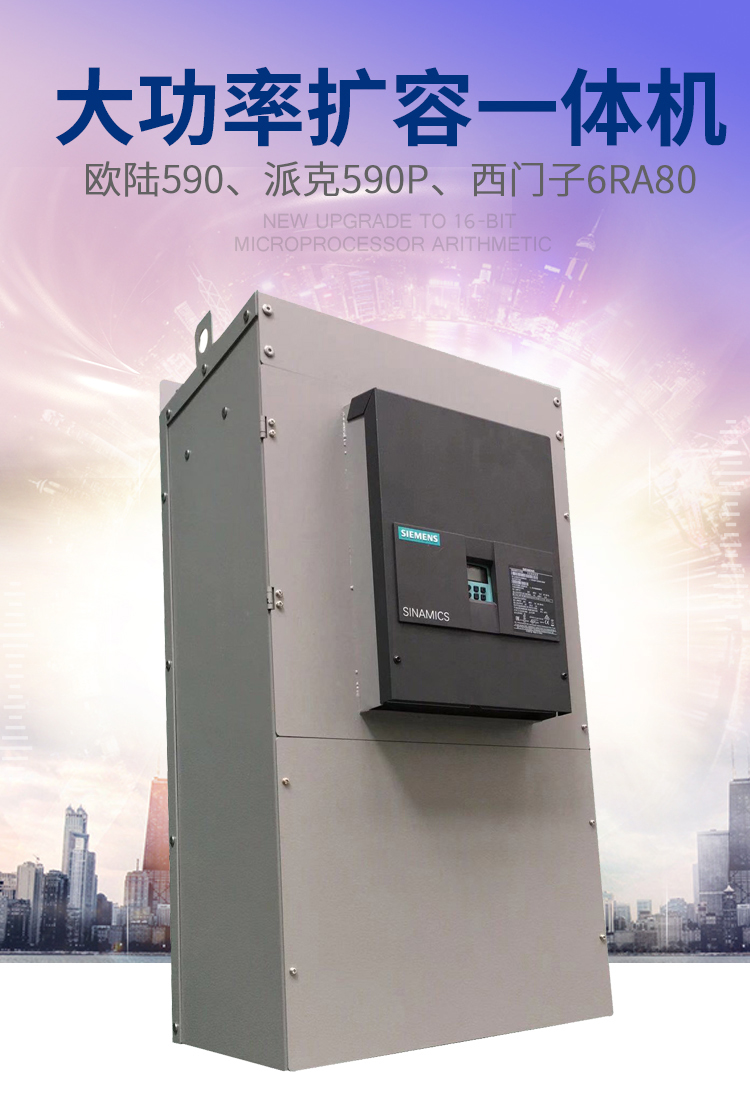

590大功率扩容调速器——590直流调速器
额定参数Ratings 额定电流Current ratings
800A with overload and 900A no overload. @ 500Vdc
1200Awith overload and 1300A no overload. @ 500Vdc
1600A with overload and 1700A no overload.@ 500Vdc
2000A with overload and 2200A no overload.@ 500Vdc
额定电压Voltage ratings :
380 - 500Vac
690Vac/600Vac UL.
过载能力Overload:
150% for 30 seconds
200% for 10 seconds.

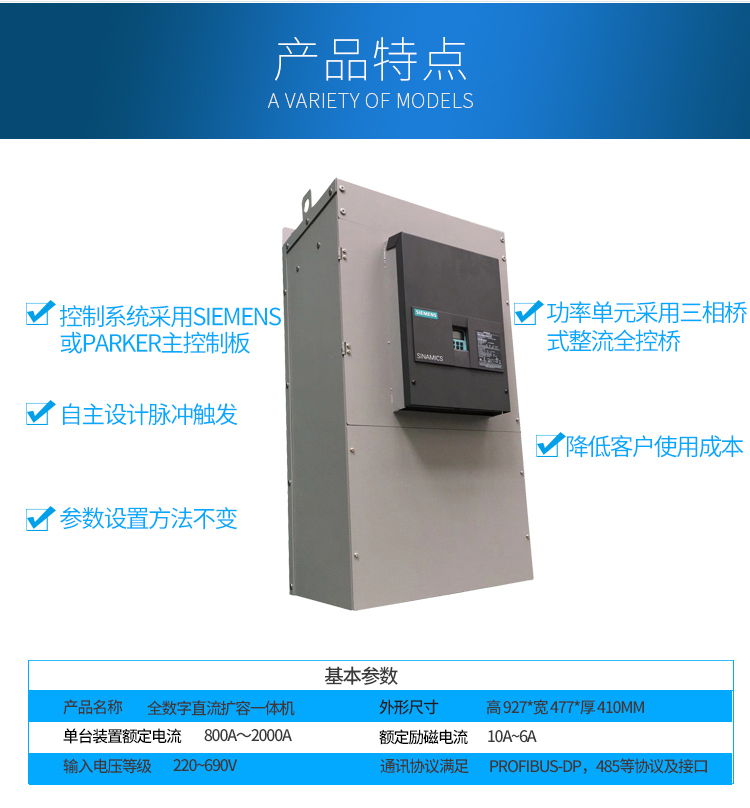

产品特点：
同功率下,比SIEMENS系列更紧凑
More compact than SIEMENS Size H of the same current rating
具有与主流驱动器的竞争力
Comparable to major competitors’ drives
成本效益更好A more cost effective drive
同样的控制,同样的特点, …
Same control board, same features, …
ICP减少20%到50%
ICP reduced by 20% to 50%+
